The 120kW-1000kW vertical power supply system saves space and is suitable for different applications. The induction heating equipment adopts IGBT series resonance technology, unique modular design, standard components, simple structure, high cost-effectiveness, easy use, simple maintenance and repair, and reduces usage costs.
1、 Product features:
1. IGBT inverter, series resonance technology, energy-saving and high efficiency, saving 10-30% energy compared to thyristor induction heating power supply
2. The device design is simple and practical, with high cost-effectiveness
3. Start under any load condition Full load operation
4. Protection function . Work status detection, high equipment reliability
5. Modular design, with over 80% of components in module groups, all models have interchangeable module groups, making maintenance and repair simple and convenient, and low usage costs
6. Digital display design, intuitive and convenient monitoring of working status. You can choose a touch panel for smarter operation.
7. Digital control technology - The equipment adopts digital phase-locked loop (DPLL), pulse width modulation phase-shift power modulation (PWM), fuzzy control, etc Technology, from pulse generation, power control to fault detection, is complete
8. Controlled by digital chips, it greatly reduces the power changes or failures caused by environmental factors and the length of usage time, greatly improving the reliability and stability of the equipment
9. The filtering capacitor uses thin film capacitors, which have stable and reliable performance and long service life. Control technology enables devices to operate stably and reliably even with small capacitance.
10. Reserve AD and DA interfaces, provide analog signal transmission, and support MODBUS protocol for digital signal transmission. It is easy to interconnect with PLC, CNC control, and supporting equipment, achieving integration. Automation control can choose digital display or touch screen display
More advantages of induction heating equipment with built-in transformer:
1. The transformer is built-in, making equipment installation simpler and more reliable, saving space.
2. Transformers isolate input and output, making them more reliable.
3. Transformer secondary resonance, equipment matching impedance range is wide, when the workpiece is heated The equipment is working in a state to achieve heating effect
4. Good matching effect with different coils, making it easier for customers to make coils
5. Heating non-magnetic and irregular workpieces, easy power output, high heating efficiency, and increased output.
6. The heating furnace that can be connected to thyristor induction equipment can work, reducing the cost of equipment upgrades and replacements
Induction heating power supply with built-in transformer parameter table

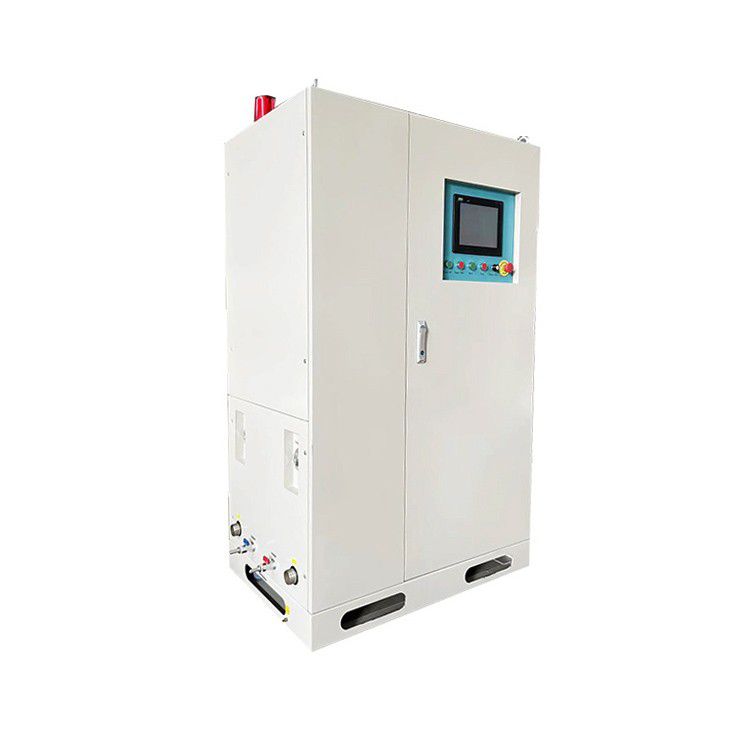

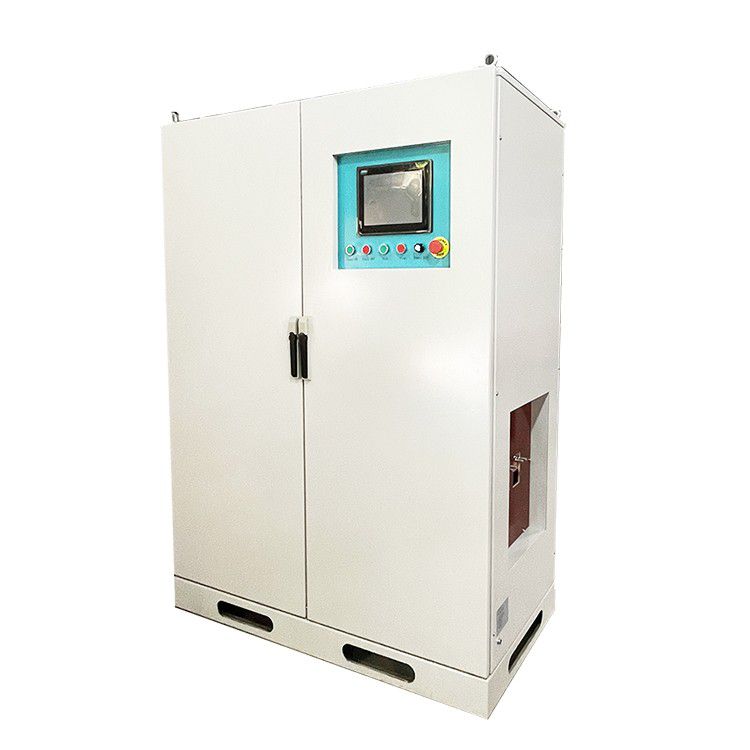

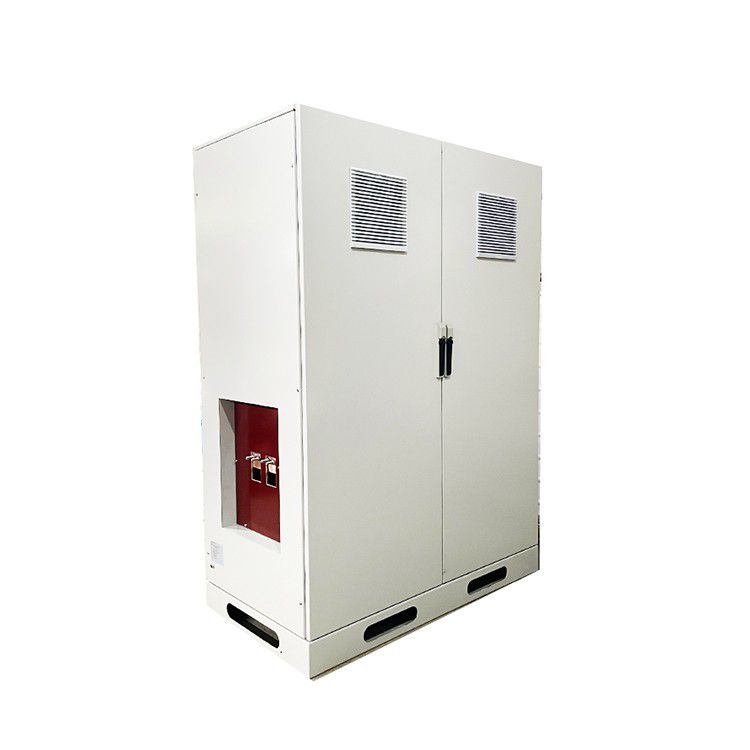

300KW vertical power supply system
